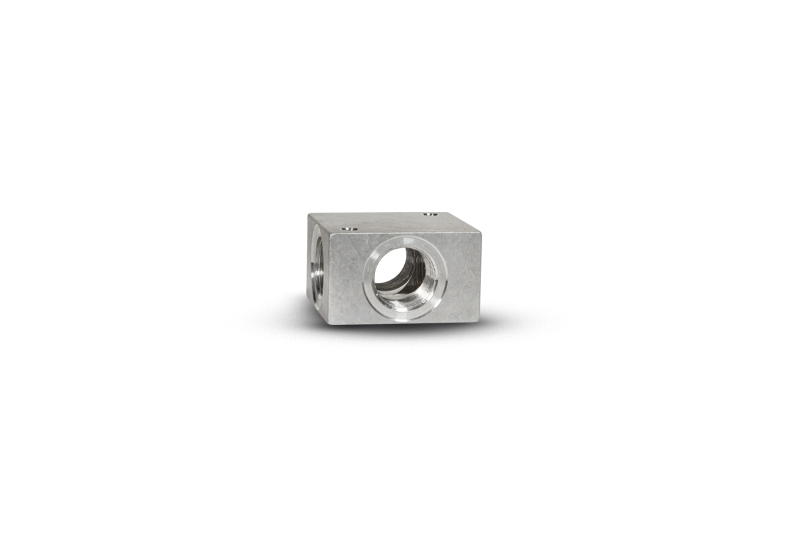

4-Ways distribution manifold with groove

Type

Tee-cross Manifold 1/8
Tee-cross Manifold 1/4
Tee-cross Manifold 3/8
Tee-cross Manifold 1/2

General specifications

Material: aluminium
Treatment: tumbling
On request: anodising

4-way distribution manifold tumbled

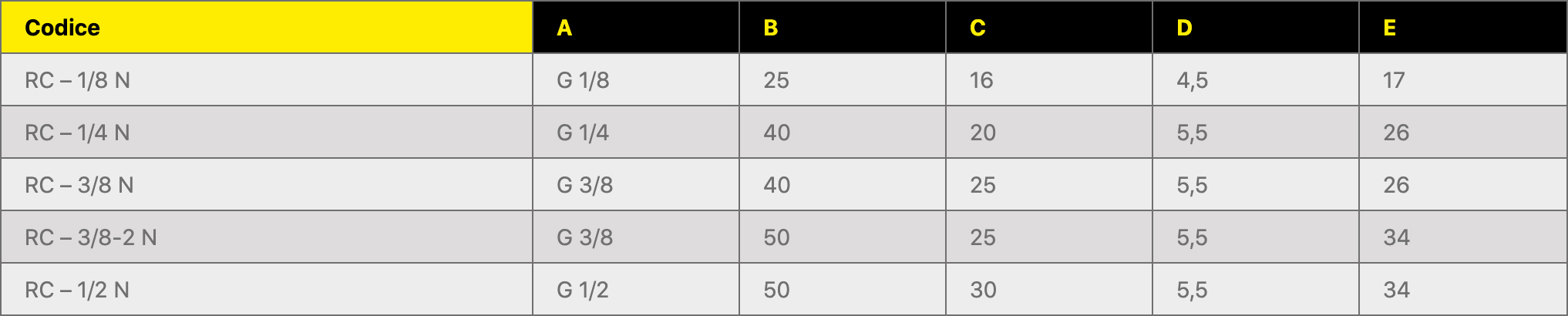

Item
A
B
C
D
E
Technical design
RC – 1/8 N
G 1/8
25
16
4,5
17
Visualizza .pdf
RC – 1/4 N
G 1/4
40
20
5,5
26
Visualizza .pdf
RC – 3/8 N
G 3/8
40
25
5,5
26
Visualizza .pdf
RC – 3/8-2 N
G 3/8
50
25
5,5
34
Visualizza .pdf
RC – 1/2 N
G 1/2
50
30
5,5
34
Visualizza .pdf

Availability of step and iges files of each item. Write to info@ifom.it or call +39 0346 21657

4-way distribution manifold anoised

Item
A
B
C
D
E
Technical design
RC – 1/8 AN.N
G 1/8
25
16
4,5
17
Visualizza .pdf
RC – 1/4 AN.N
G 1/4
40
20
5,5
26
Visualizza .pdf
RC – 3/8 AN.N
G 3/8
40
25
5,5
26
Visualizza .pdf
RC – 3/8-2 AN.N
G 3/8
50
25
5,5
34
Visualizza .pdf
RC – 1/2 AN.N
G 1/2
50
30
5,5
34
Visualizza .pdf

Availability of step and iges files of each item. Write to info@ifom.it or call +39 0346 21657
